The 4% Rule in Coating Quality Management

Justin Rigby, Principal and Managing Director, Remedy Asset Protection

This article provides a plain-language summary of Justin Rigby’s technical paper on coating quality management. The full paper is available below.

Most coating systems that fail early do not fail because the coating was wrong. They fail because someone skipped a hold point, applied in the wrong conditions, or let contamination through. Those are field execution problems. They are fixable. The 4% Rule is a practical framework for fixing them before they compound.

On projects with initial coating work valued at AUD $4 million or more, allocating approximately 4 percent of total project budget to structured coating quality management activities is the threshold at which a programme becomes comprehensive and consistently effective. Below that, quality oversight tends to be reactive. At 4 percent, it becomes proactive.

What Is Coating Quality Management?

A common assumption is that hiring an inspector covers the quality management requirement. It does not. An effective programme runs from specification through to project close-out. It typically includes:

• Early technical input during asset evaluation and repair planning
• Translating durability goals into coating system and materials selection strategy
• Developing technically robust, measurable specifications
• Confirming contractors, materials, and competencies meet requirements before work starts
• Defining hold points before work commences, not during it
• Independent verification of surface preparation and application at critical stages
• Managing non-conformances as they arise, not after completion
• Complete close-out documentation: inspection reports, test results, and non-conformance records

AS/NZS 5131 defines a PC2 quality level for coating work where the consequences of failure are significant. The 4% Rule framework is consistent with PC2 requirements and with the independent inspection and durability assurance services that RemedyAP delivers on major coating projects.

Why Coatings Fail Early

A coating leaves the factory as a system with a rated service life. What happens on site determines whether it achieves that life. The factory cannot control surface preparation, ambient conditions, application technique, or recoat timing. Those variables belong to the field.

Small departures from specified controls carry significant consequences:

• Residual soluble salt contamination above the specified limit promotes osmotic blistering
• Exceeding recoat intervals prevents adequate inter-coat adhesion
• Applying outside the specified dew point margin increases the probability of moisture entrapment

Each of these mechanisms can initiate premature failure on its own. In combination, they compress a 15-year coating life to 3 to 7 years. The 4% Rule addresses this directly. It resources the oversight that holds field execution to the standard the specification assumes.

What 4 Percent Funds on a Large Project

For a project with AUD $4 million or more in initial coating work, a 4 percent allowance of approximately $160,000 typically funds:

• Coating specialists engaged for upfront condition assessment and repair options analysis
• Detailed specification development and inspection and test plan preparation
• Independent AMPP-certified inspectors deployed at key hold points
• Environmental monitoring: temperature, humidity, dew point throughout application
• Dry film thickness, adhesion pull-off, and holiday detection testing at specified intervals
• Non-conformance identification and resolution in real time
• Thorough testing and close-out documentation at project completion

Minor defects are identified and corrected before they compound into failures. The field verification layer is delivered through the coating inspection programme, while the protective coating specification defines the standard to which contractors are held.

Four Projects That Show Why It Matters

Case Study 1: Ship Loader Recoat: QA Prevents AUD $1.5 Million in Rework

At a large bulk export facility, approximately 4 percent of a $20 million project budget was allocated to a comprehensive coating QA programme. Independent inspectors worked a 24-hour cycle over four months.

Testing identified excessive soluble salt contamination above the specified limit of 50 mg/m². Some sections had also exceeded the allowable recoat interval. The QA team directed remediation before coating proceeded. Without the programme, the likely outcome was blistering or adhesion loss within a few years. The proactive measures averted an estimated $1.5 million in rework costs and approximately four weeks of operational downtime.

Case Study 2: New Tank Construction: 10% of Steel Plates Returned Before Priming

On a project to fabricate and install new diesel storage tanks, approximately 5 percent of the $2.4 million coating-scope budget was allocated to QA. Inspectors attended the fabrication shop and the construction site.

At the fabrication shop, approximately 10 percent of steel plates showed insufficient blast profile or residual mill scale. These were returned for rework before priming. All hold points were enforced on site. The tanks were commissioned with coatings that met all quality criteria on the first attempt. The project avoided an estimated two-month unplanned downtime.

Case Study 3: Polyurea Lining: No QA, Full Relining at Year 2

At a gold processing plant, a large process tank was lined with spray-applied polyurea. The specification was contractor-driven and no independent inspection was engaged. Within two years, the lining showed extensive blistering and delamination from moisture entrapment during application. An unplanned shutdown and complete relining were required.

A programme with strict environmental controls and cleanliness verification would have identified the problem before application proceeded. When root cause is contested after the fact, independent coating failure analysis can determine mechanism and assign responsibility. That is a significantly more expensive outcome than prevention.

Case Study 4: Epoxy Lining: Amine Blush and Missed Recoat Windows

A large coastal storage tank was recoated with a high-performance epoxy lining. Within three years, it showed widespread delamination and under-film corrosion. Investigation confirmed amine blush had not been removed. Amine blush is a thin waxy residue that forms on epoxy during curing. It before the topcoat was applied. Some areas had also exceeded the maximum recoat interval.

The tank required full rework far ahead of schedule. A QA presence monitoring inter-coat preparation and recoat timing would have prevented both conditions.

What the Numbers Show

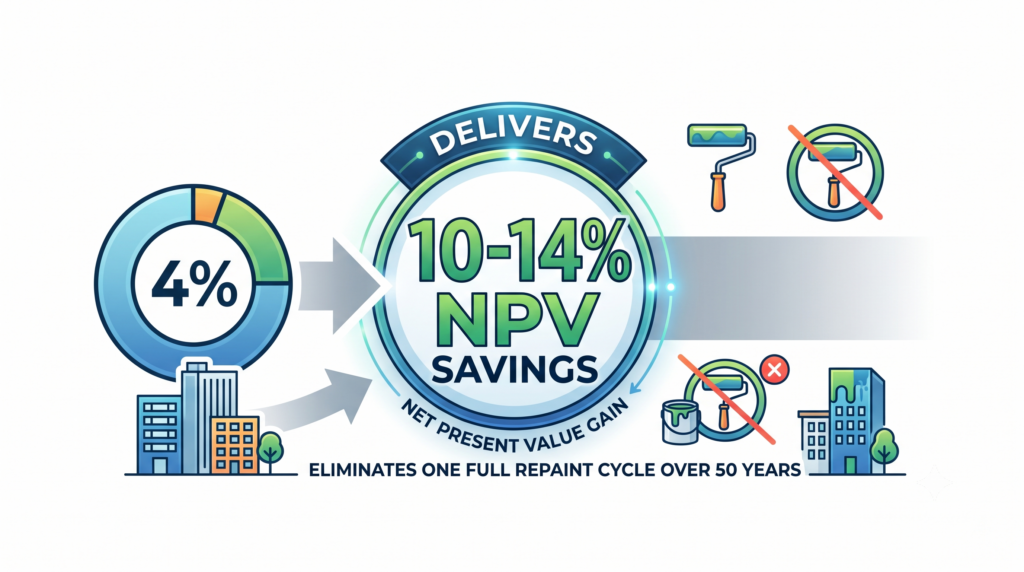

The NPV analysis compares two scenarios on a representative $4 million coating project with a 10-year nominal service life. In plain terms: the quality-managed project avoids one full repaint cycle over 50 years. That is the entire basis for the saving.

• Baseline (minimal QA) over 50 years: AUD $7.86 million
• Quality-managed (4% QA) over 50 years: AUD $6.91 million
• Net saving: AUD $0.95 million, representing 12.1 percent of baseline cost

Sensitivity analysis across discount rates of 4 to 10 percent confirmed the advantage in all cases. NPV savings ranged from 9.8 to 14.4 percent of baseline cost. The benefit is driven by eliminating one repaint cycle, not by assumptions about interest rates.

Why a Warranty Is Not Enough

Contractor warranties reduce in value year on year. By year 10, recourse for rework is minimal. Consequential losses such as downtime, environmental impact, and emergency repairs are not covered. By the time a claim is processed, the asset owner has already carried costs that are not recoverable.

A warranty addresses failure after it occurs. The 4% programme addresses the conditions that cause failure before work starts. That is a different thing entirely.

From an asset management perspective, the 4% investment is a structured form of insurance. It integrates with durability assurance planning from the design stage. It ensures that the coating system selected, specified, and applied delivers its full intended service life, rather than providing a fallback once it has already failed.

Conclusion

Most coating failures in aggressive environments are avoidable. They come from controllable field execution problems, not from the coating itself. Allocating approximately 4 percent of project value to structured quality management consistently produces coatings that reach their design life.

Over 50 years, this eliminates at least one full repaint cycle and delivers net savings of 10 to 14 percent. The 4% Rule is not an additional cost. It is the most reliable way to protect the value of the initial coating investment.
